In a best case situation, the glass would extend down into the door about 1 1/2 inches with the window rolled up. Unfortunately, this glass is cut on the short side and only extends into the door about 1/2 inch. This places the channel under the glass sash a little too high in the door. There is a short bar with 2 rollers attached to it that slides in the channel below the glass. This channel is then bolted to the mounting pad on the regulator. With the glass this high in the door, the mounting pad on the regulator will hit the top of the door before the glass reaches the top.
To compensate for this, we welded on an extra piece of steel to the roller bar that mounts between the regulator and the glass sash. If the extra height needed was less than an inch, it would have been possible to drill alternate holes towards the top of the regulators mounting pad.

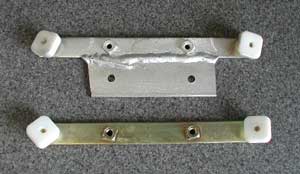

In the photo below, the bar on the bottom is the original piece that came with our kit and the bar on the top is our modified piece.
