MES Swiss Made Power Door Lock Kits

MES & TW SERIES KITS ARE AVAILABLE FOR INSTALLATION IN CARS & TRUCKS WITH STANDARD ROD LINKAGE OR CABLE MECHANISMS

MES HIGHLIGHTS

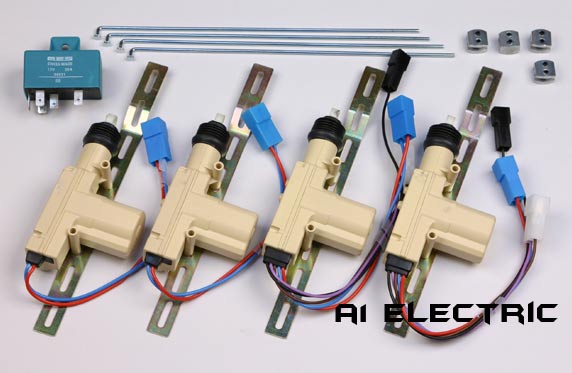

MES W02F 4 Door Lock Kit Shown Above

MES door locks are available in rod or cable style kits.
Central locking kit. Your existing lock knobs and door key activate the system. Locking or unlocking either of the front doors will automatically lock or unlock all of your vehicle's doors.
Optional lock/unlock switches are available.
Precise actuator linkage adjustment and alignment is necessary for proper operation.
Low friction actuators mean less resistance added to factory linkage.
MES actuators are the original gun style actuators.
Swiss made actuators are number one for reliability! One of our best sellers since 1985.
Powerful motors. Actuators will dead lift up to 8 pounds. For comparison, a gallon of water weighs just over 8 pounds.
Solvent welded cases.
Jacketed wire harness to protect wiring.

TW SERIES HIGHLIGHTS

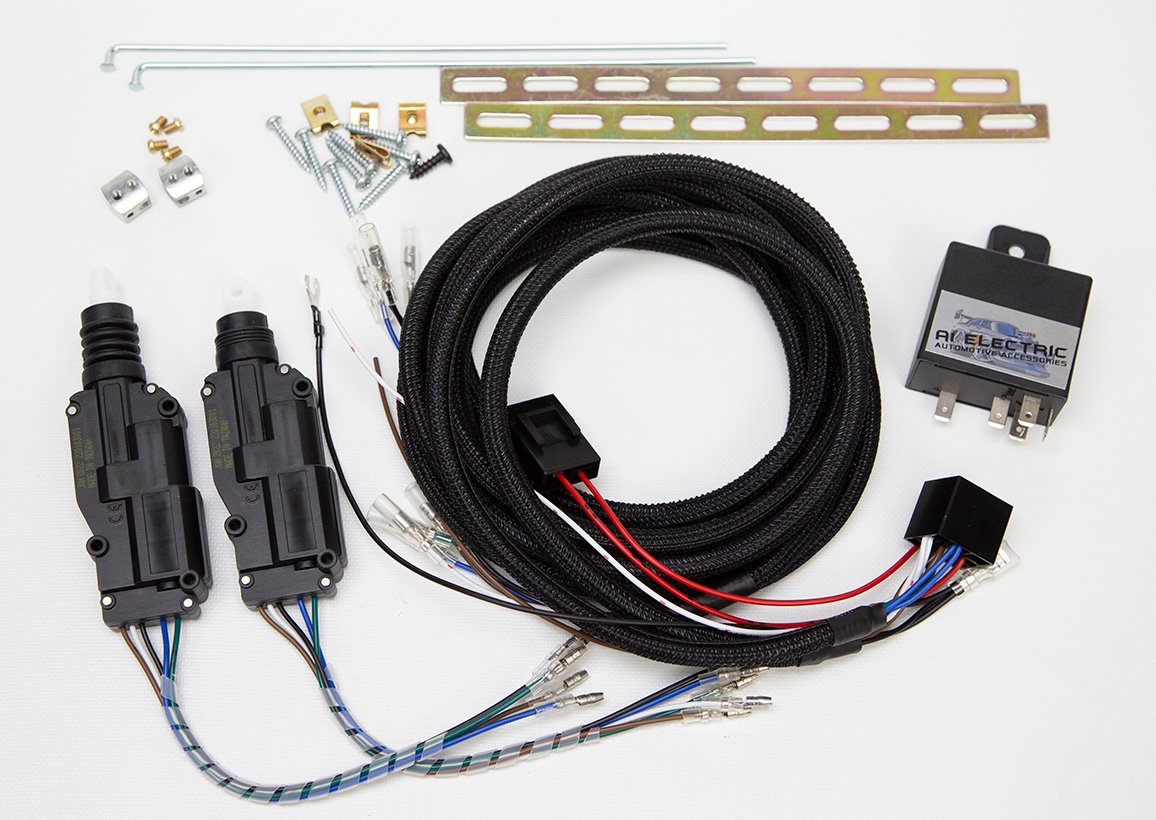

A1 Electric TW Series 2 Door Lock Kit Shown Above

TW kits can be easily configured for use with rod or cable systems.
Central locking kit. Your existing lock knobs and door key activate the system. Locking or unlocking either of the front doors will automatically lock or unlock all of your vehicle's doors.
Optional lock/unlock switches are available.
New design makes actuator linkage adjustment and alignment easier than the MES kit.
Low friction actuators mean less resistance added to factory linkage.
Compact actuator design. Takes less space to mount than the MES gun style actuators.
Reliable actuators have extremely low defect rate.
Powerful motors. Actuators will dead lift up to 8 pounds. For comparison, a gallon of water weighs just over 8 pounds.
Strong casing. Cases are riveted together to help prevent breakage and splitting.
Wiring harness protected with braided sleeve.

ROD VS CABLE

Door lock latches and locks are connected to the inside knob with either a rod or a cable. Prior to model year 2000, almost all cars and trucks used rod style mechanisms. From the mid 2000's, almost all import cars and trucks started using cables to connect the lock knob to the latch. Many of the later American cars are now using cable mechanisms. Note, however, that many American trucks (Ford and Chevy) still use rod style linkage in their doors. In many later vehicles, pulling off a door panel is the only sure way to tell.

The TW Series kits are designed to be used with rod or cable linkage with the simple addition of a cable bracket for cable installations.

MES has one system for rod linkage and a different system for cable linkage that has unique door lock actuators and hardware.

KEYLESS ENTRY

Our door lock kits are available in complete kits with keyless entry systems and with alarm/keyless entry systems for the ultimate in convenience. Our systems are also compatible with any keyless entry, alarm or remote start system that has pulsed negative door lock/unlock outputs.

DOORLOCK INSTALLATION ARTICLES

Door lock actuators mounted in various vehicles

Short article showing how actuators are mounted onto cable linkage

MES Central door locking kit and keyless entry system installed in a 2003 Chevy Silverado Pickup. This is an in depth A to Z article loaded with information.

OPTIONAL SWITCHES

The 2 switches shown to the right are available for use with our MES door lock kits. They are not necessary for proper operation, but add convenience in some vehicles where the lock knobs are difficult to reach. Switch dimensions are available on our switches page.

POWER DOOR LOCK KITS & KEYLESS ENTRY SYSTEMS

W01F
W02F
W01F-712T
W02F-712T
W01F-740T
W02F-740T
W15F
W16F

W01C
W02C

W01C-712T
W01C-740T
W02C-712T
W02C-740T

2 Door Central Door Locking Kit
4 Door Central Door Locking Kit
2 Door Central Door Locking Kit with Remote Controlled Keyless Entry
4 Door Central Door Locking Kit with Remote Controlled Keyless Entry
2 Door Central Door Locking Kit with Remote Controlled Keyless Entry & Security System
4 Door Central Door Locking Kit with Remote Controlled Keyless Entry & Security System
Single 2 wire door lock actuator
Single 5 wire door lock actuator

2 Door Central Locking Kit for Cable actuated locks
4 Door Central Locking Kit for Cable actuated locks

2 Door central locking kit with keyless entry for cable actuated door locks
2 Door central locking kit with keyless entry & security system for cable actuated door locks
4 Door central locking kit with keyless entry for cable actuated door locks
4 Door central locking kit with keyless entry & security system for cable actuated door locks
