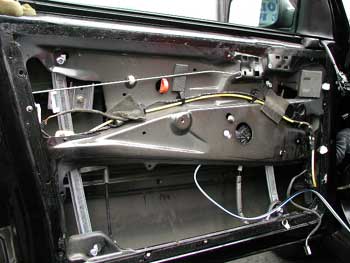

The window glass is carefully lowered into the loosened glass clamps and the clamps are tightened. It's important to tighten the clamps with the glass almost all the way up and the clamps visible through the access holes. Tightening the clamps while the glass is in this position will allow the glass to self center itself to the regulator assembly. Note the red clamp in the upper right photo. This clamp helps hold the upper regulator cable out of harms way (blue arrow). If you haven't already attached the motor wires to the motor, now is the time to do so.
