Installing Electric Life power windows in a Ford F150

A1 Electric Automotive Accessories

Installing Power Windows in a Ford F150

Installing an Electric Life custom fit power window
kit in a Ford F150 Pickup.
Removing manual regulators
Page 8

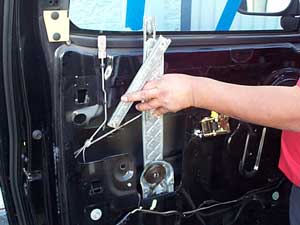

The manual window regulator is removed from the door through the large access hole. The channels that were bolted to the door and glass need to be reused on the new electric regulators. There is a small tab towards the end of the channel that needs to be flattened with a hammer and punch so that the skates can slide out of the channels.

PREVIOUS NEXT PAGE

Section 1.........................Removing the door panels
Section 2...............Removing the manual regulators
Section 3.....Installing the power window regulators
Section 4..............Installing the switches and wiring
Article Pages
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
