Installing an Electric Life custom fit power window
kit in a Chevy Silverado pickup truck.

Installing the wiring
Page 8

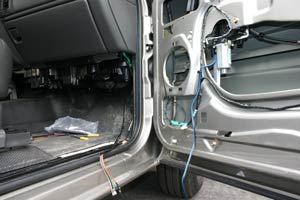

The wire loom is carefully run across the dash and into the right door.  Care must be taken to avoid moving objects such as the gas and brake pedals and the air conditioning linkage.  Wire ties are used to hold the loom up under the dash.

The wiring connectors are crimped onto the 2 wires coming form each motor.  Our main wire loom has the connectors already crimped onto them.  The wire terminals are then inserted into the connector blocks in the correct order following the instructions included in the switch kit.



PREVIOUS            NEXT PAGE
Section 1...........................Removing the door panels
Section 2.................Removing the manual regulators
Section 3.......Installing the power window regulators
Section 4........................Installing the window wiring
Section 5..................................Installing the switches

Article Pages
1  2  3  4  5  6  7  8  9  10  11  12  13
