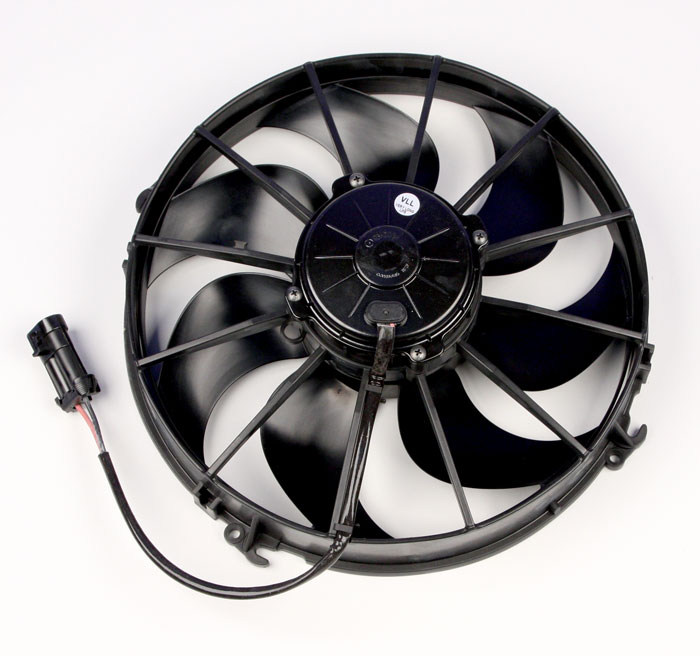

Spal 30103202HO 12" High Output Fan


Spal 30103202HO 12" High Output Fan
    Quantity in Basket: None
    Code: 30103202HO
    Price: $199.98
    Shipping Weight: 10.00 pounds


    HO Harness:
    HO Wiring Harness with Relay & Pigtail -- $129.95
    HO Wiring Harness with Relay & Pigtail -- $129.95
    No Harness Needed - $0.00
    Temperature Sensor:
    185 Degree Temp Sensor - $24.95
    185 Degree Temp Sensor - $24.95
    195 Degree Temp Sensor - $24.95
    195 Degree Temp Sensor - $24.95
    No Temp Sensor Needed - $0.00
    Mounting Brackets:
    30130011 Bracket & strap kit 7.64 inches (4 pcs) - $13.00
    30130011 Bracket & strap kit 7.64 inches (4 pcs) - $13.00
    30130010 Bracket kit .75 inches flat (4 pcs) - $4.00
    30130010 Bracket kit .75 inches flat (4 pcs) - $4.00
    30130013 Pin Mounting Kit (4 pcs) - $20.00
    30130013 Pin Mounting Kit (4 pcs) - $20.00
    30130017 Bracket kit .75 inch raised (4 pcs) - $4.00
    30130017 Bracket kit .75 inch raised (4 pcs) - $4.00
    30130032 Bracket kit 1.13 inches raised (4 pcs) - $4.00
    30130032 Bracket kit 1.13 inches raised (4 pcs) - $4.00
    30130033 Bracket kit 2.31 inches raised (4 pcs) - $13.00
    30130033 Bracket kit 2.31 inches raised (4 pcs) - $13.00
    No Brackets - $0.00
    HO Fan Wiring Pigtail:
    Fan Wiring Pigtail -- $11.95
    Fan Wiring Pigtail -- $11.95
    No Pigtail Needed -- $0.00
    Quantity:

    Spal 30102802HO 12 inch High Output electric radiator cooling fan with long life motor. This heavy duty fan was designed to have the power to pull air through a 4 row radiator and air conditioning condenser! This fan has specially designed large curved blades and a high power motor for maximum performance. Spal fan motors are waterproof and the fan and motor are balanced as an assembly to assure smooth reliable operation. This is one of the most powerful 12 inch fans made. Don't let the specs fool you, the specially designed blades on this fan allow it to pull a greater volume of air through a 4 row radiator and condenser than most other fans. Most fans are designed for optimum performance with single and dual row radiators. Note that this fan draws 40 amps of current and needs over 100 amps of start up current. If you are not using the Spal HO harness and relay, your wiring must be able to handle this current. The vehicles alternator must also be able to handle the extra 40 amps of current draw. This usually means an alternator with 120 amps output or more.

    This fan has 4 mounting tabs molded into the shroud, plus it has 4 mounting slots which can accept the optional, standard spal mounting brackets if desired. Mounting brackets are sold in 4 piece sets and can be chosen from the options list above if desired. Bracket kits are available at discounted price only when purchased with a Spal Fan. Caution! This fan draws 40 amps when it is pulling at it's maximum. This fan must be wired up using the FRH-HO-SW relay and harness or equivalent. The FRH-HO-SW comes with a Heavy duty relay, 195 degree temperature switch, 60 amp fuse, wiring connector for the fan and a complete fan motor to battery wiring harness. See FRH-HO-SW in related items below for more info. If you will be building your own harness and relay setup the fan motor pigtail can be ordered seperately. More information on ordering fans, brackets and fan controllers can be found on the Spal Fan Information Page. This page opens in a new window and can be closed when you are finished.

    Fan Specifications Button  Click on Fan Specifications button to view the technical specifications for this fan. Note: Info is in Metric. Fan Specs open in a new window and require "Adobe Acrobat Reader 7.0.5" or later to view.

    Protect your investment. A1 Electric sells genuine Spal products and is an authorized Spal distributor. Dealer Pricing is available. Call for details.

    Spal Fan Sale! Select Spal fans are 10% off! Discount shown in shopping basket.
